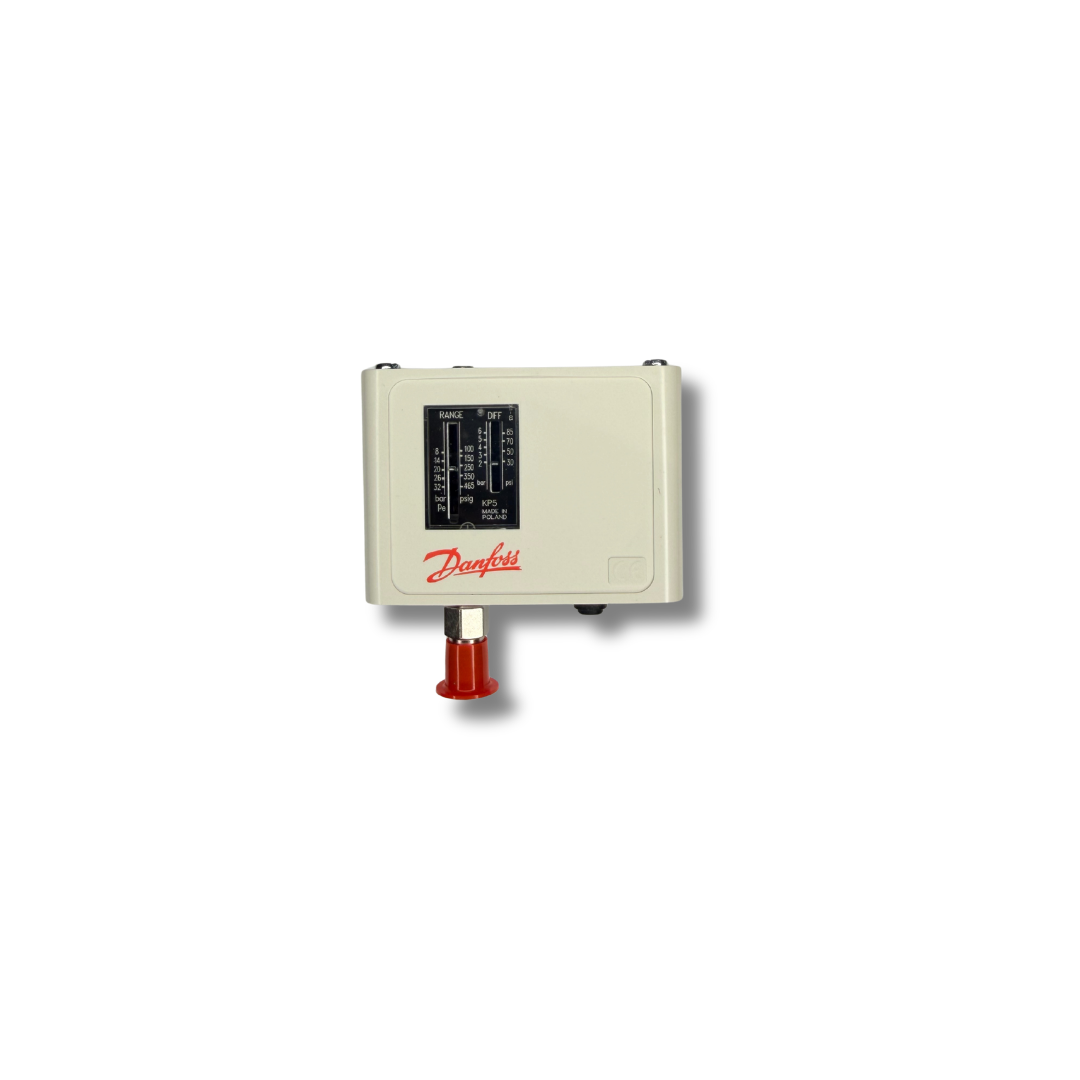

Danfoss KP5 060-1171 High Pressure Switch
Danfoss KP5 060-1171 High Pressure Switch, 8 to 32 bar Auto Reset - view 2
Danfoss KP5 060-1171 High Pressure Switch, 8 to 32 bar Auto Reset - view 3
Danfoss KP5 060-1171 High Pressure Switch
Danfoss KP5 060-1171 High Pressure Switch, 8 to 32 bar Auto Reset - view 2
Danfoss KP5 060-1171 High Pressure Switch, 8 to 32 bar Auto Reset - view 3
Danfoss KP5 060-1171 High Pressure Switch
Danfoss KP5 060-1171 High Pressure Switch, 8 to 32 bar Auto Reset - view 2
Danfoss KP5 060-1171 High Pressure Switch, 8 to 32 bar Auto Reset - view 3
Danfoss

Danfoss KP5 060-1171 High Pressure Switch, 8 to 32 bar Auto Reset

SKU: 060-1171

Danfoss KP5 high pressure switch (code 060-1171) with automatic reset, used to stop the compressor when discharge pressure is too high. Read More
Quantity

Quick reply with price & availability.

Need several products?

Add them to a quotation request and send them all at once.

📞 Call us ✉️ Email

Prices and availability are confirmed by our team · Mon–Fri 8am–6pm, Sat 8am–1pm

  • Genuine parts from trusted brands
  • Delivery across Lebanon
  • Wholesale & retail since 1987
5 In Stock. Ready to be shipped!

About the Product

Danfoss KP5 high pressure switch (code 060-1171) with automatic reset, used to stop the compressor when discharge pressure is too high.

Key Features

  • Adjustable range and differential with visible scale
  • SPDT changeover contact
  • IP44 enclosure
  • 1/4" flare pressure connection

Specifications

  • Brand: Danfoss
  • Model / Part No.: KP5, 060-1171
  • Type: High pressure switch
  • Range: 8 to 32 bar
  • Differential: 1.8 to 6 bar
  • Reset: Automatic
  • Contact: SPDT, 16A 400V (AC1), 10A 400V (AC15)
  • Max. working pressure: 35 bar
  • Connection: 1/4" flare (7/16"-20 UNF)
  • Enclosure: IP44
  • Ambient temperature: -40°C to 65°C

Applications

  • Compressor protection in refrigeration systems
  • Cold rooms and commercial refrigeration
  • Air conditioning plants
